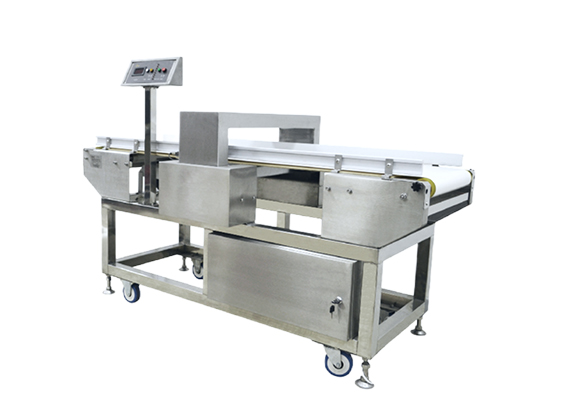

GJ-IV Metal Detector for Aluminum Foil Packaging

Online contact 4008-200-150

Product Parameters

product video

Product advantages

Application

parameter
video
advantage
application

Parameters

SPECIFICATION

Model	GJ-IV Ferromagnetic
Aperture Size	3010	3012	3015	3018	4510	4512	4515	4518
Aperture Passing Width(mm)	300				450
Aperture Passing Height(mm)	100	120	150	180	100	120	150	180
Sensitivity for Fe(Φmm)	≥1.0	≥1.2	≥1.5	≥2.0	≥1.0	≥1.2	≥1.5	≥2.0
Control Panel	Button Control
Construction Material	Stainless Steel 304
Belt Type	Food Grade Belt
Power Supply	AC110～220V±10%, single phase, 50/60 Hz
Working Temperature	-10 ℃ ～40℃
Conveyor Speed	Standard: 28 Meters/Minute Optional: Adjustable Speed(extra charge)
Alarm Pattern	Standard: Alarm Buzzer and Belt Stop Optional: Reject System(extra charge)

Note:
1.The above sensitivity is tested by standard testing piece in empty running conveyor, while the actual sensitivity with products will depend on the type, dimension, weight, package, composition, status of the products, position of the mixed contaminants and environment factors, etc.

2.Other special aperture size can be customized with extra charge

FEATURES

? Specially used for metalized packaged products, such as normal aluminum foil package and aluminum film package

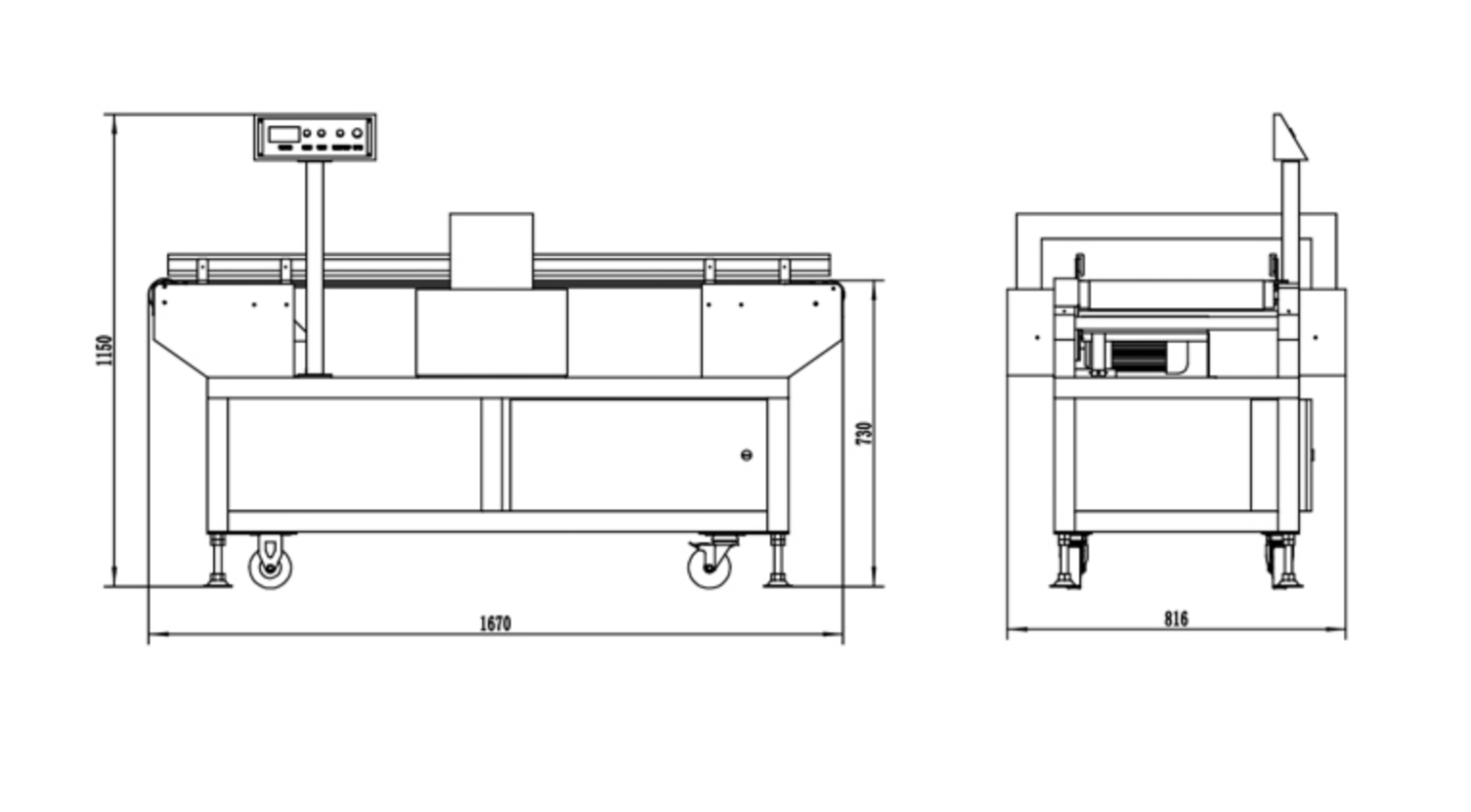

DIMENSION DRAWING

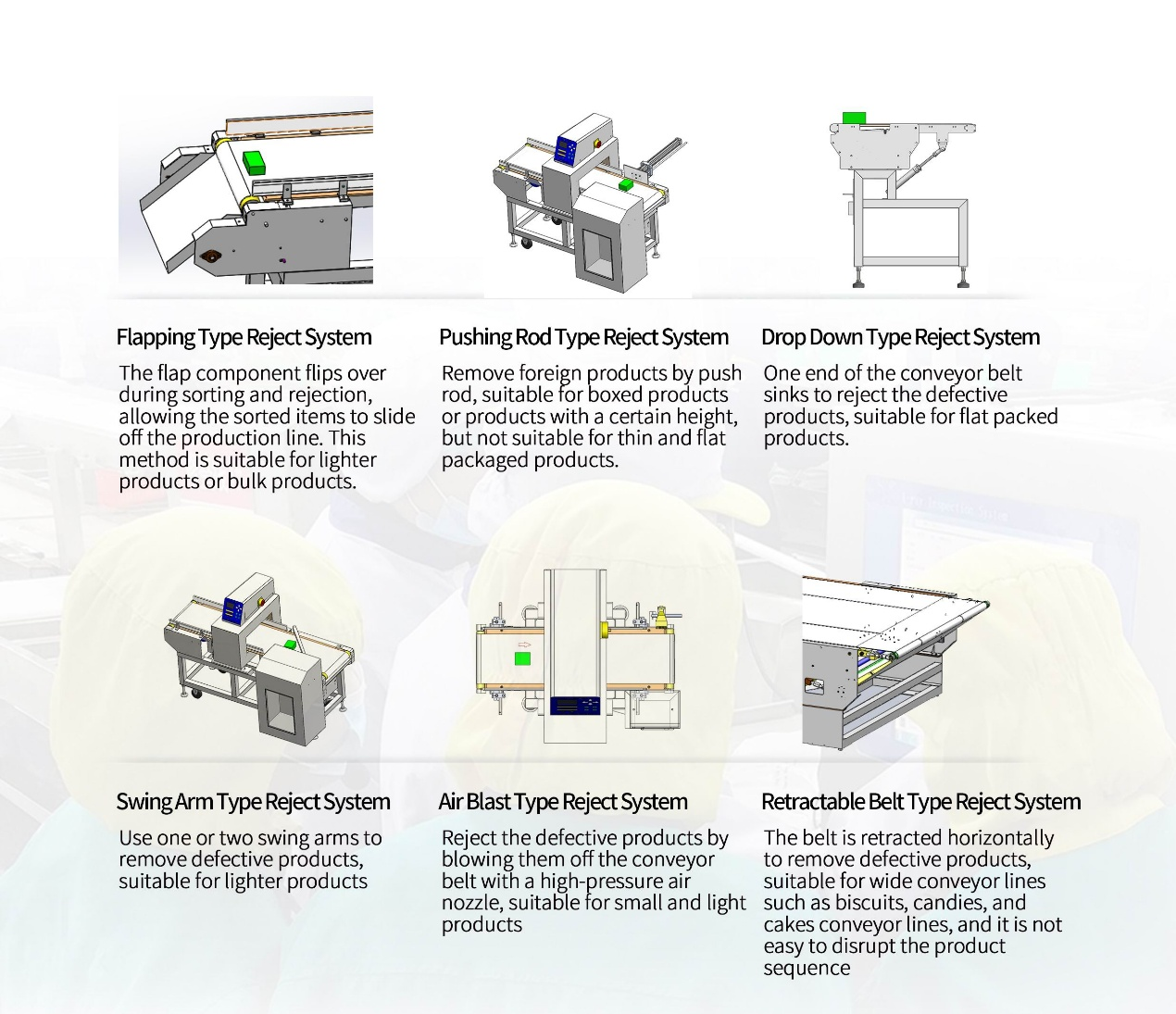

DIFFERENT TYPES OF REJECT SYSTEM

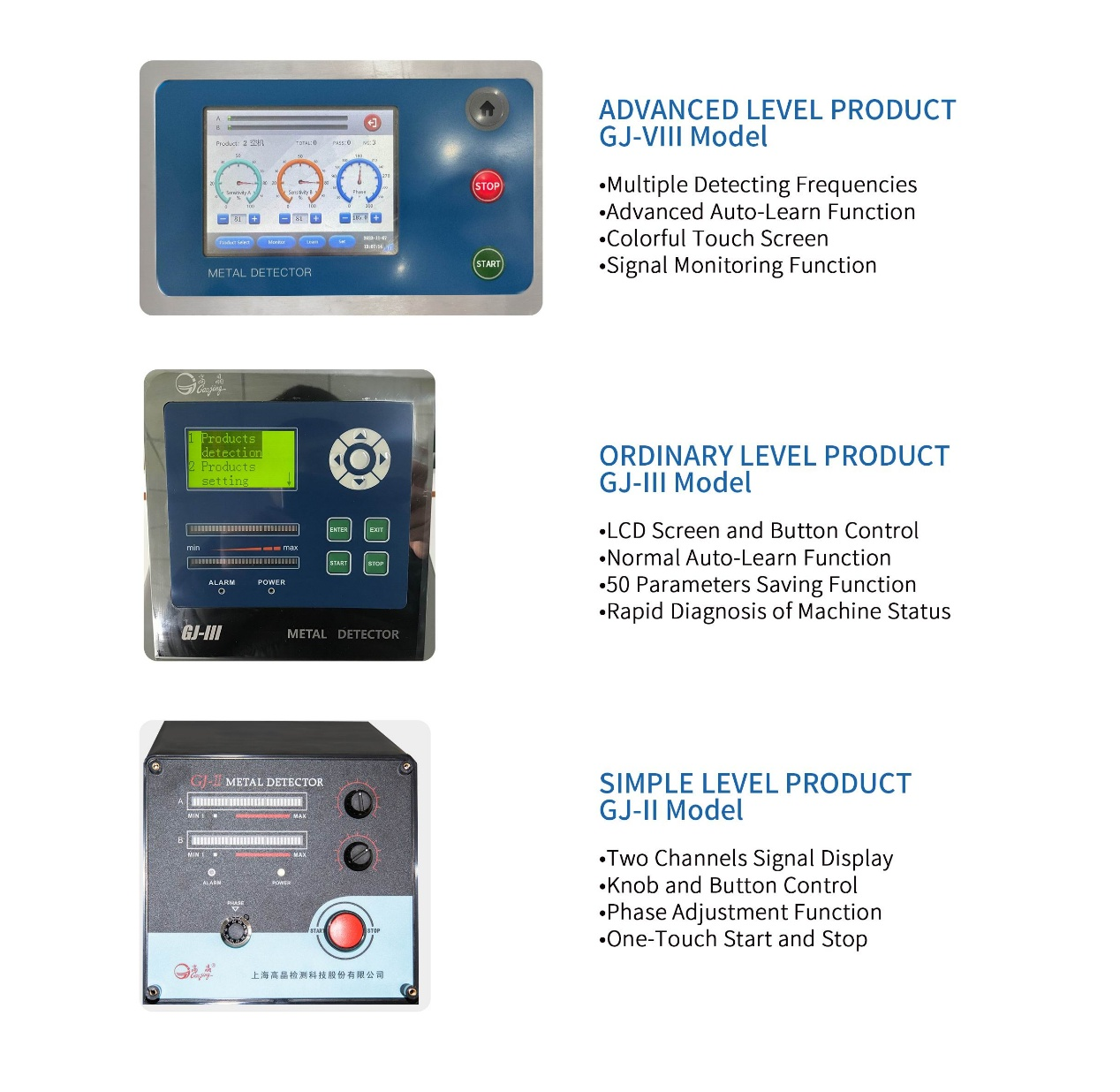

DIFFERENT LEVEL PRODUCTS AVAILABLE

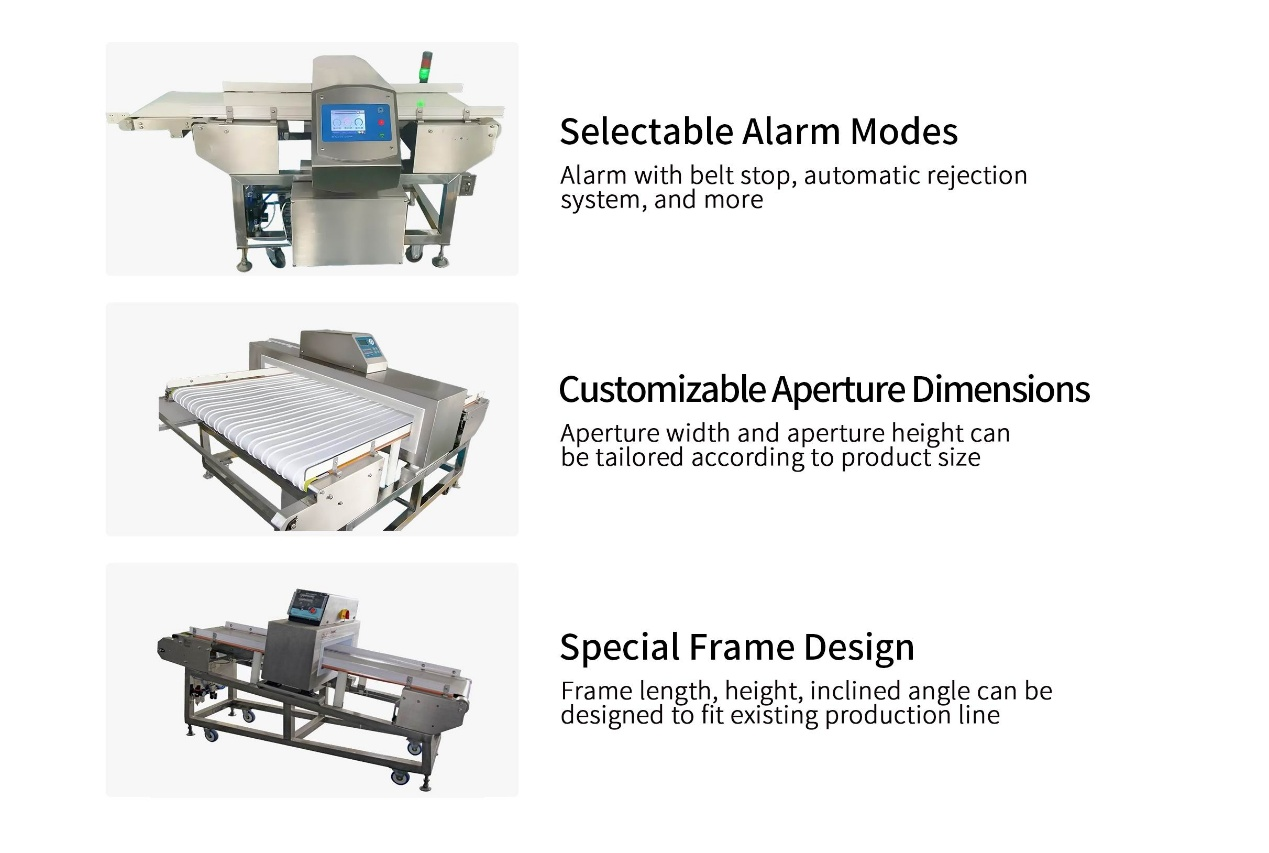

DIVERSIFIED CUSTOMIZATION AVAILABLE

product videos

Product advantages

Suitable for detecting metal foreign objects in aluminum foil packaging, aluminum film packaging, meat sausages with aluminum buckles, pickled products, etc.
